Cap/Diode System For Motor Noise Suppression

  • Sale
  • Regular price $8.99


Use this for any 6S multirotor application with motors up to 2806.5. Use one Cap/Diode system per four motors and solder directly to batt pads on ESC or AIO. This product is designed with the appropriate wire length, thickness and quality to be maximally effective in the smallest and lightest package for the job. We do not recommend longer or different gauge wires. Shorter wire length is best.

What actually is this product?

If you're operating a modern multirotor, you're probably using modern ESC's which often struggle to manage electronic noise coming from the motors. This electronic noise can cause significant performance fluctuations in your flight controller or completely fry components on your craft. This product is designed to help manage electronic noise to improve both performance and longevity of components. It has been specifically designed to be very easy to use and as effective as possible in a very light and small package given it's performance.

This capacitor is paired with TVS diodes on a board such that they complement each other. It's a 35V 820uf FR series Panasonic capacitor with TVS diodes that will shunt 18A at 28V. The two operate very differently. While the diodes function extremely quickly and with extremely low latency, the capacitor will better manage sustained electrical fluctuations also with extremely low latency.

This product is directly targeted at 5" 6S FPV quads but works very well elsewhere too.

Physical Specifications:

  • 32mm 18awg wire
  • Max installed wire length of 30mm STRONGLY recommended
  • 4.3g with all wire
  • 29mm height
  • 10mm diameter, 15mm PCB length
  • Conformal coated PCB

Capacitor Specifications:

  • 35v 820uf Panasonic FR capacitor
  • 10,000 hr life
  • 0.018ohms impedance
  • 2470 (100kHz +105C mA r.m.s.) ripple current

TVS Diode Specifications (per diode):

  • Diodes Incorporated
  • Reverse standoff voltage 28V
  • Breakdown voltage: 31.1-34.4
  • Max Clamping Voltage: 45.4
  • Peak current: 8.8A
  • Max reverse leakage 5.0uA

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

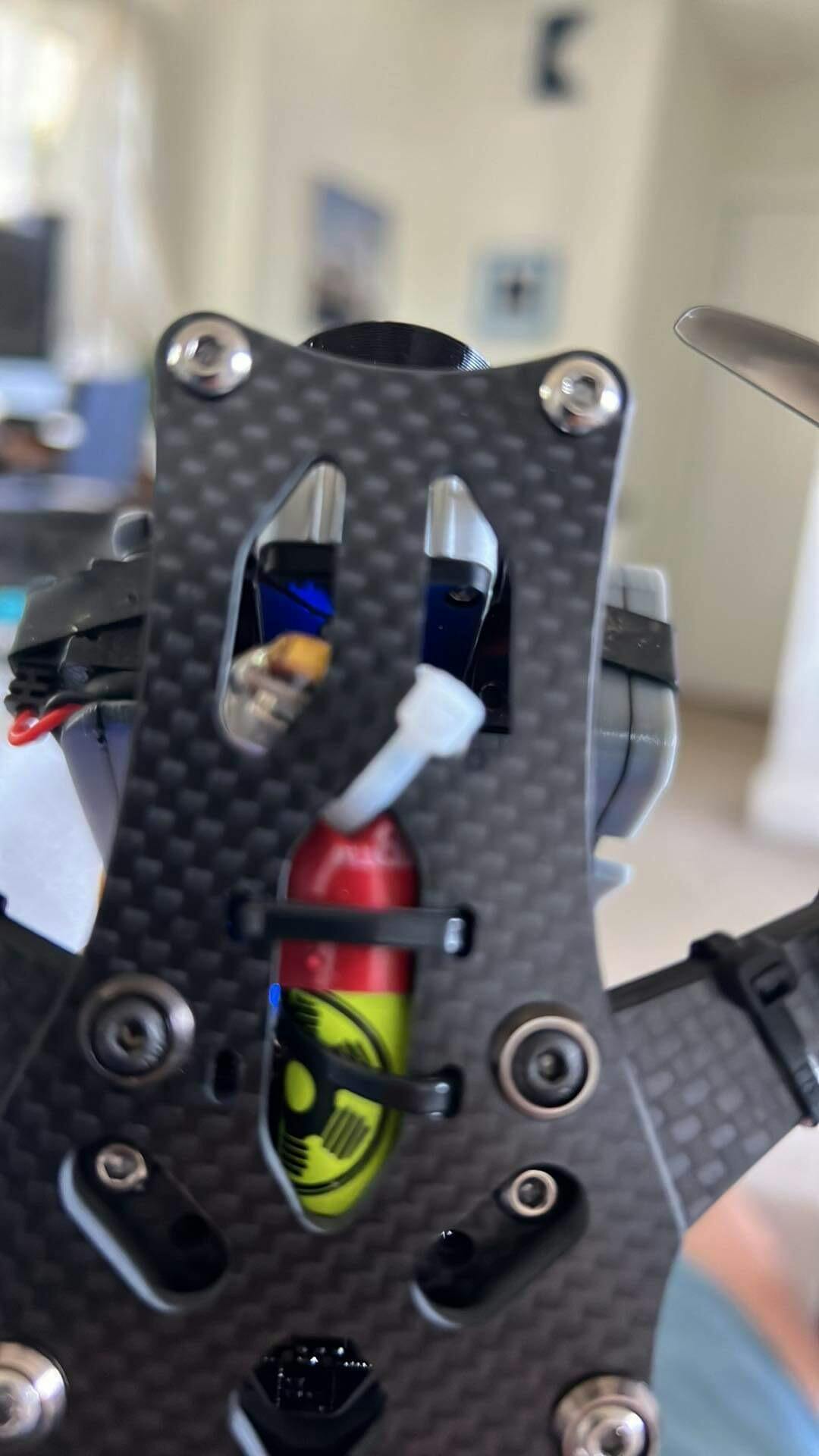

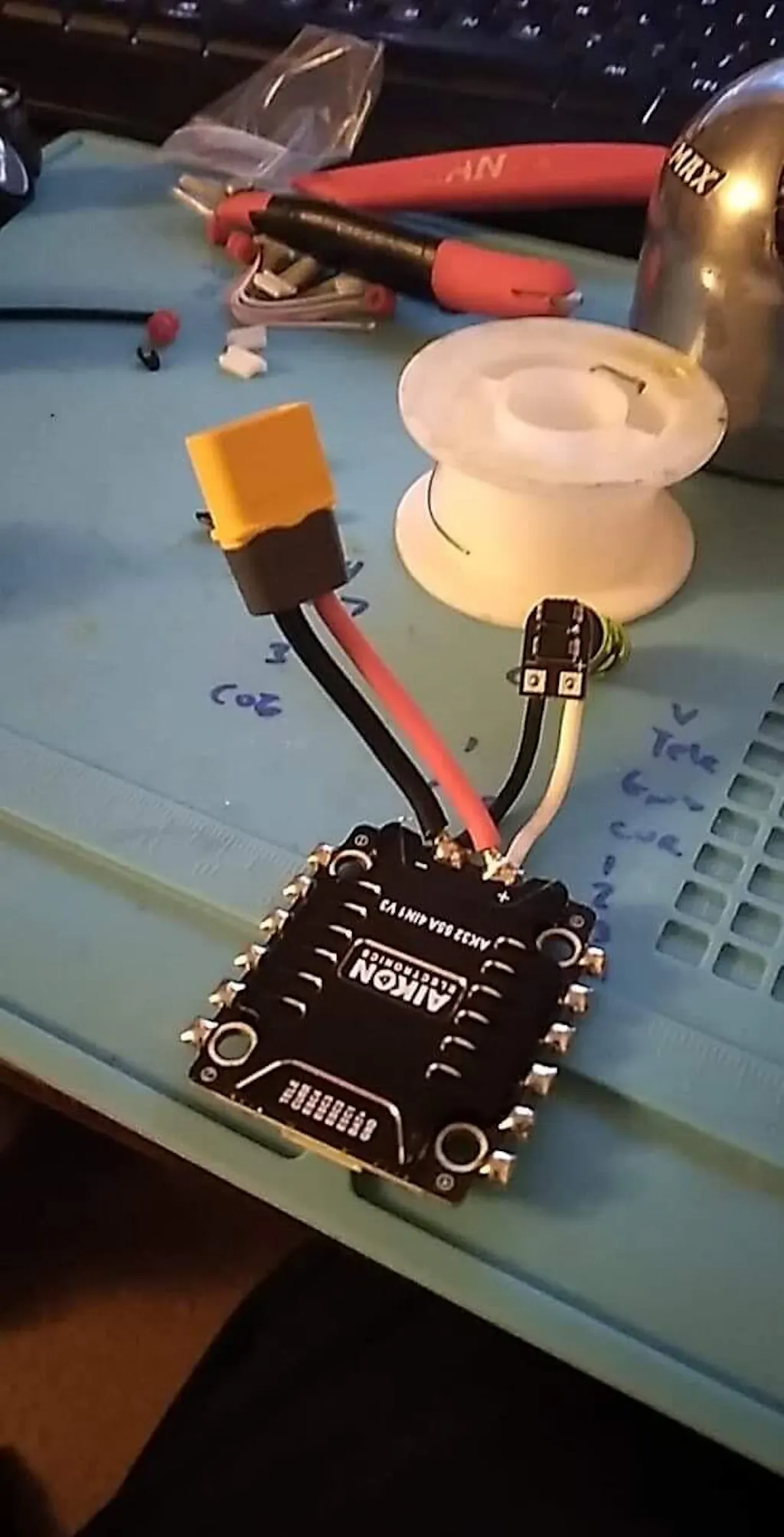

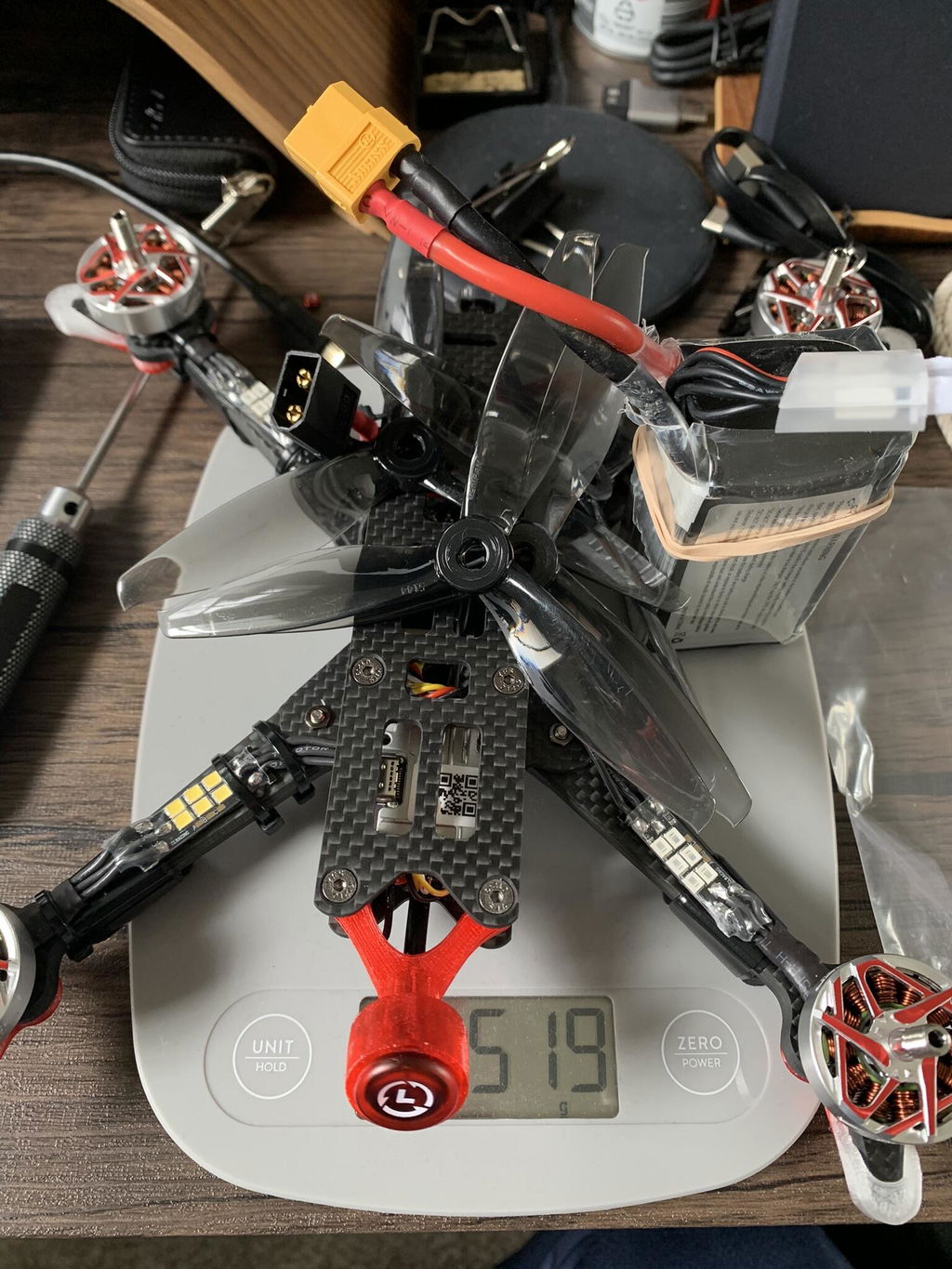

A
Achim
Nice formfactor

Very nice presoldered combination of cap and tvs diode

D
Daniel Mackey (San Francisco De Las Llagas, US)
Works excellent

Amazing little combo I love it

R
Ryan Rochford (mouseFPV) on (Novi, US)
works well

no complaints. A little expensive, but you get a nice cap, and the diode/spike absorber. Saves from having to use a cap cap, and comes with high quality wire as well.

B
Brian F (Calabasas, US)
Caps are MUST haves for 6S builds.

Very convenient and clean. Having the FPVCycle integrated cap and diode is very covenient! Reduces power spikes for your quad. Wired leads make for multiple mounting options.

C
Cheech FPV (Stamford, US)
Worth Its Value in Gold!

So I’m very skeptical of new products in FPV and their claims. So I purchased this diode/cap for a new build because I’ve heard positive things from other pilots including Bardwell. Long story short I’m very surprised how much this product helps in noise suppression and ESC protection. My quad with this cap installed flies like velvet! And I have a almost identical build with the same frame with a basic cap. So I know this cap is helping a lot suppress electrical noise. HIGHLY RECOMMENDED!!! 5 Stars
