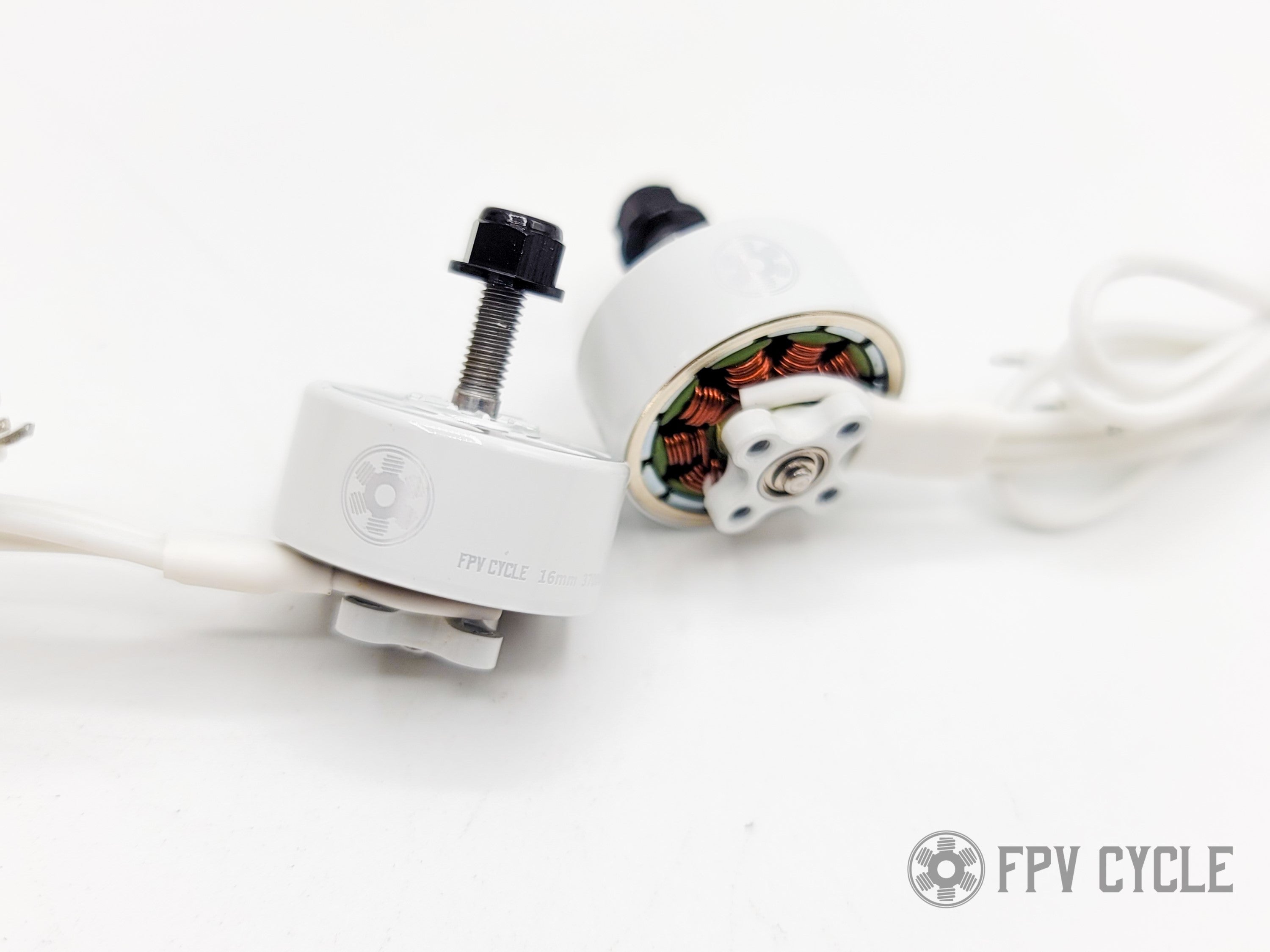

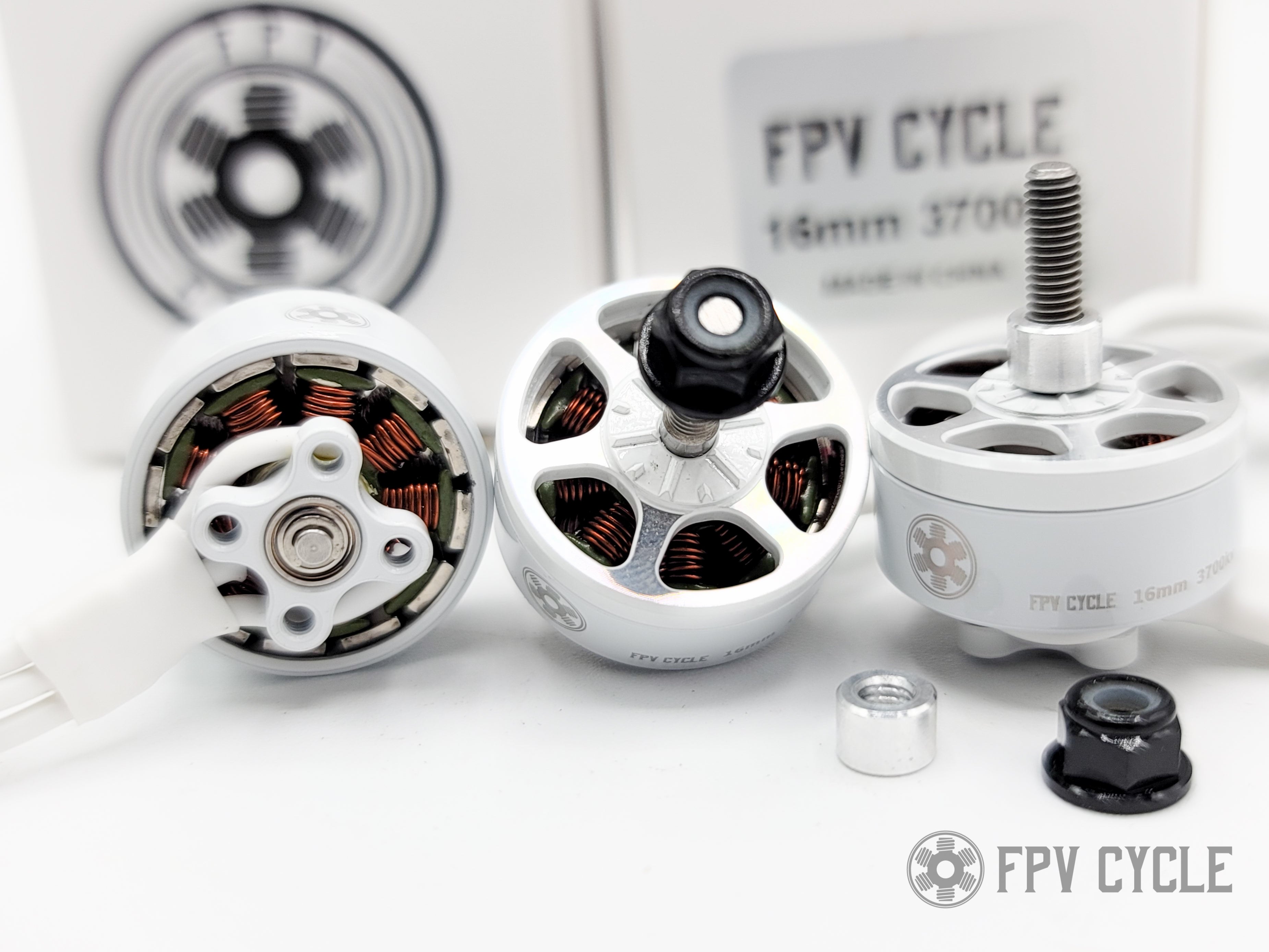

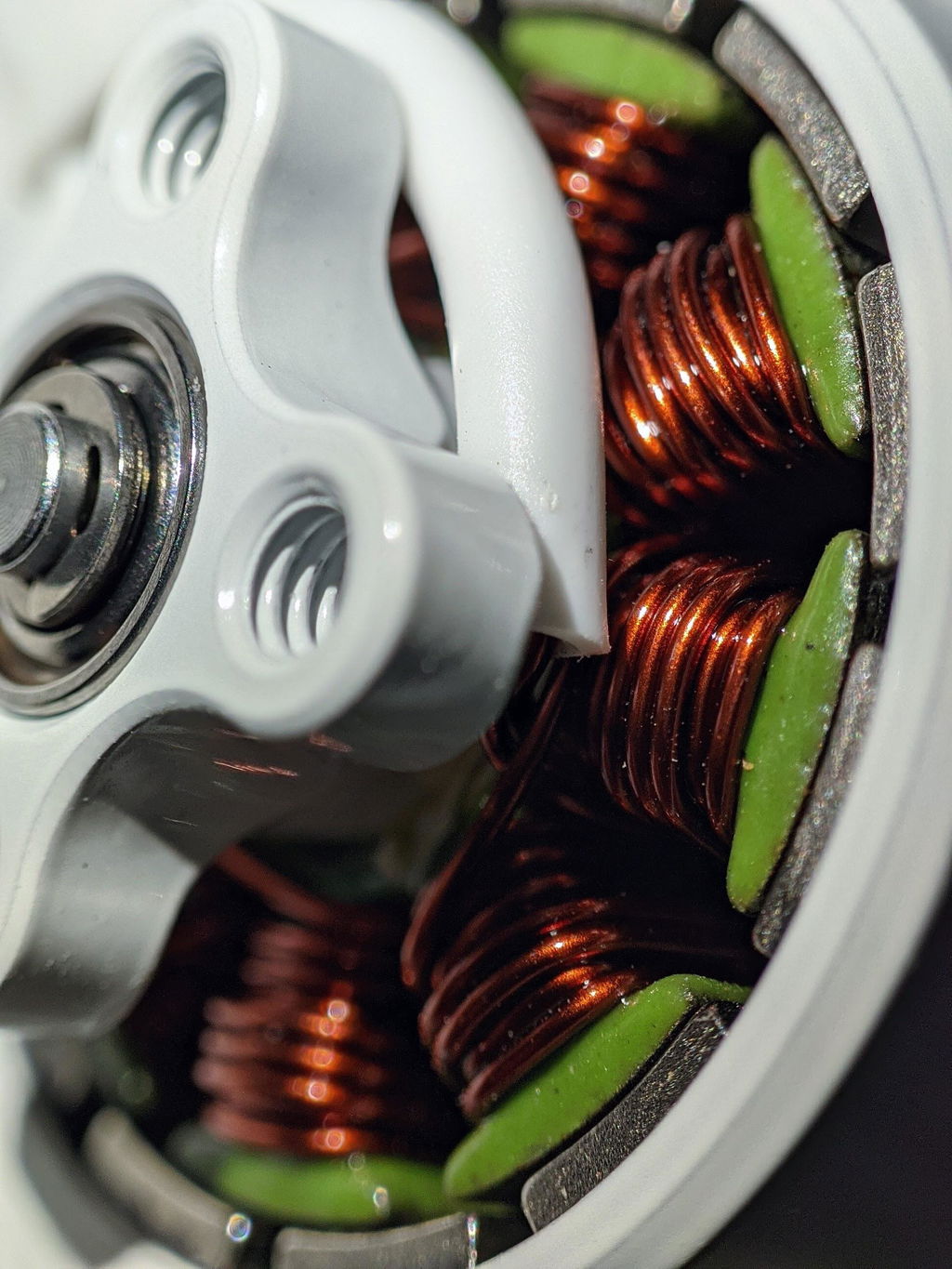

This motor is unique in a few ways. First off, it’s sporting our new lighter prop shaft design, it’s got a 9x9 M2 mount so it will fit lighter style frames and the overall stator volume is higher than 1605 while weighing much less than it should. This motor is ideal for high powered 3” operation and low weight 4” crafts.
The goal of this motor is maximum power and control for a medium weight 3" quad. A taller stator with taller magnets are used for the high RPM control needed for small 3" props but a wide 16mm diameter with middling 4100kv is used to manage the heat dissipation of the motor in use. This is one of the most genuinely unique and interesting motors we've got in our lineup.
This motor is very powerful and 'notchy'. Please be sure to use a properly applied and appropriately sized capacitor.
- 3” 3S-4S high powered craft with AUW >150g
- 4” 3S with very low load props and under ~250g AUW
- 16mm stator diameter, greater than 5mm stator height
- 9x9mm M2 mounting pattern (not flush mount)
- ~13g with ~70mm length wires
- ~16g with prop adapter, nut and 240mm 24awg wire length
- 0.15mm Kawasaki High performance laminations
- N52SH ARC magnets
- 3mm grade 5 titanium internal shaft

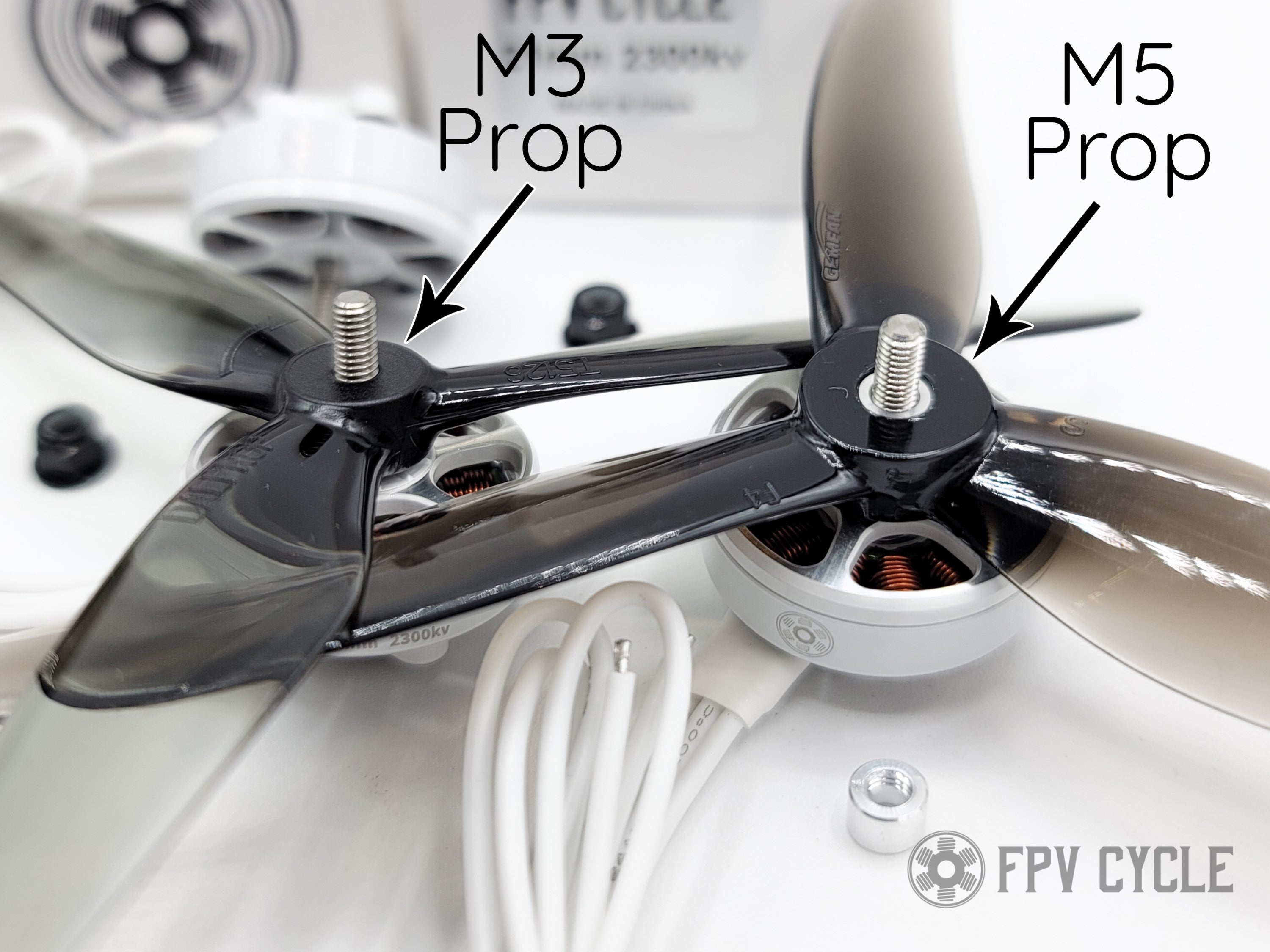

- M3 grade 5 titanium prop shaft with M5 adapter
- 2x5x2.5mm 520zz Japan ISC Custom bearings
- 7075-T6 aluminum casing
- 260℃ enamel coated single wrap oxygen-free copper windings

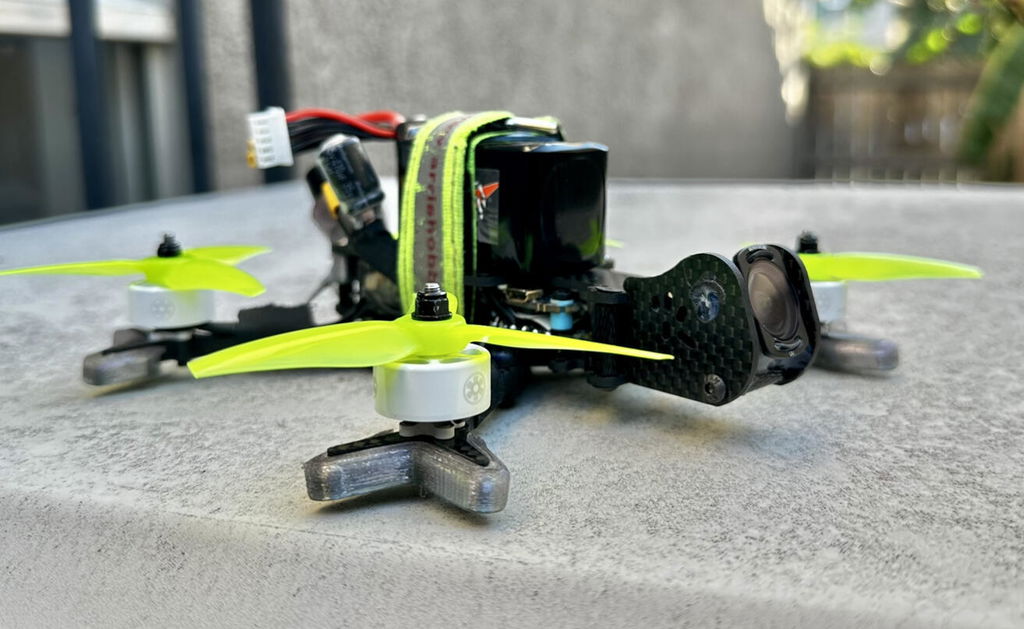

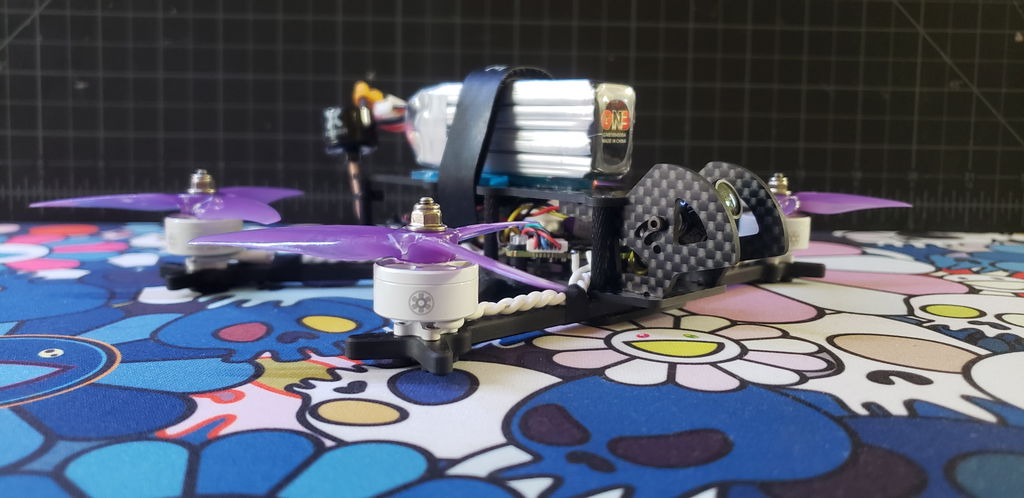

MY FAVORITE QUAD FOR A LONG TIME NOW HAS BEEN THE TP3 BUT I HAVE A NEW FAVORITE . WOW WHAT PERFORMANCE IT HAS .
WITH BATTERY 234 GRAMS .
DRAGON FROG FRAME
HGLRC Zeus35 AIO - F4 FC + 35A BLS 3-6S 4-in-1 ESC
Caddx Polar Micro Digital FPV Vista
FPVCYCLE 16MM MOTOR - 4100KV
15cm Replacement Antenna Spare Part for Caddx Vista DJI
COUPLE THINGIVERSE FILES
Tattu R-Line 650mAh 4S1P 14.8V
I've got the non-unibell version of these motors, got them for free hehehe
Works great on my 3.5 inch quad, high quality motors Very happy with them!
They have amazing power for their weight. IMO they work very well on 3.5inch with 5s lipo, or 4s lipo on 4inch prop, both work amazing
This motor are very powerful.
Nice throttle response.
I think on 3s for 3” and 3.5” are very good and nice for TOOTHFAIRY2.
The only choice for 3.5 inch props
