This motor has had a minor update. It has moved up to 2204 in size for improved performance stability and even better throttle management. This motor is compatible with the 2203 and can be mixed on the same craft without any performance issues.
This motor is the next step in its class and is designed to deliver optimal performance for very high load 3”/CineWhoop through 4” and light load 5”. It has been built to the highest meaningful specification available today as of the pandemic of 2020 and is unique in the industry.
This motor is specifically designed for the following uses:
3” ducted whoop
5” light blade and low general AUW for 5”
CineSplore w/ Gemfan 75mm CineWhoop prop
PowerPick 4” with Gemfan 4023 prop
PowerPick 5” with Gemfan 5125 prop
Fouride 4” with Gemfan 4023 prop
Fouride 5” with Gemfan 5125 prop
Red T-mount props are fantastic with Gemfan 4024
3000kv version is suitable for CineWhoop/CineSplore on 6S if desired
Recommended battery options:
3S 1000-1500mah on 3450kv with CineWhoop 3”, 4”
4S 1100-1300mah on 3450kv with CineWhoop 3” or 4”
4S 1100-1300mah on 2800kv with CineWhoop 3”, 4” or 5”
5S 1100-1300mah on 2800kv with CineWhoop 3” or 4”
6S 850-1000mah on 2800kv with CineWhoop 3”
You’re welcome to run full 4S with no throttle cut on 3450kv and 5” but be warned that it will be extremely overpowered on a very light platform and a challenge to tune. Not PID tuning, general tuning of everything but PID’s. With this very high power, if your filters and overall electronic management is not done right, the motors have some minor risk of burning. We’ve over stressed them quite a bit with no issues but the motors did get extremely hot. Even though these motors have super high temperature enamel coating on the winds, we are not responsible for burnt motors due to misuse.
- 22mm stator diameter, 3mm stator height
- 12x12mm M2 mounting pattern (not flush mount)
- ~23g with ~160mm length wires
- ~19g with short cut wires (T-mount red version is 0.55g lighter)
- 0.15mm Kawasaki High performance laminations
- N52SH ARC magnets
- 3mm grade 5 titanium internal shaft C clip retention (much lower weight)|
- M5 grade 5 titanium prop shaft
- 3x8x4mm 693zz Japan ISC Custom bearings
- 7075-T6 aluminum casing
- 260℃ enamel coated single wrap oxygen-free copper windings
- Bearing saver damping washer under bell/on top of bearing
- Tuned steel flux ring
Always buy these
This motors for my racewhoop from freezillon are very good motors. No désync no burn. Powerfull and smooth at the same time. I recommend.
Really like these motors for my light 5". Lots of power and very light.
Very happy with these motors in a racewhoop !

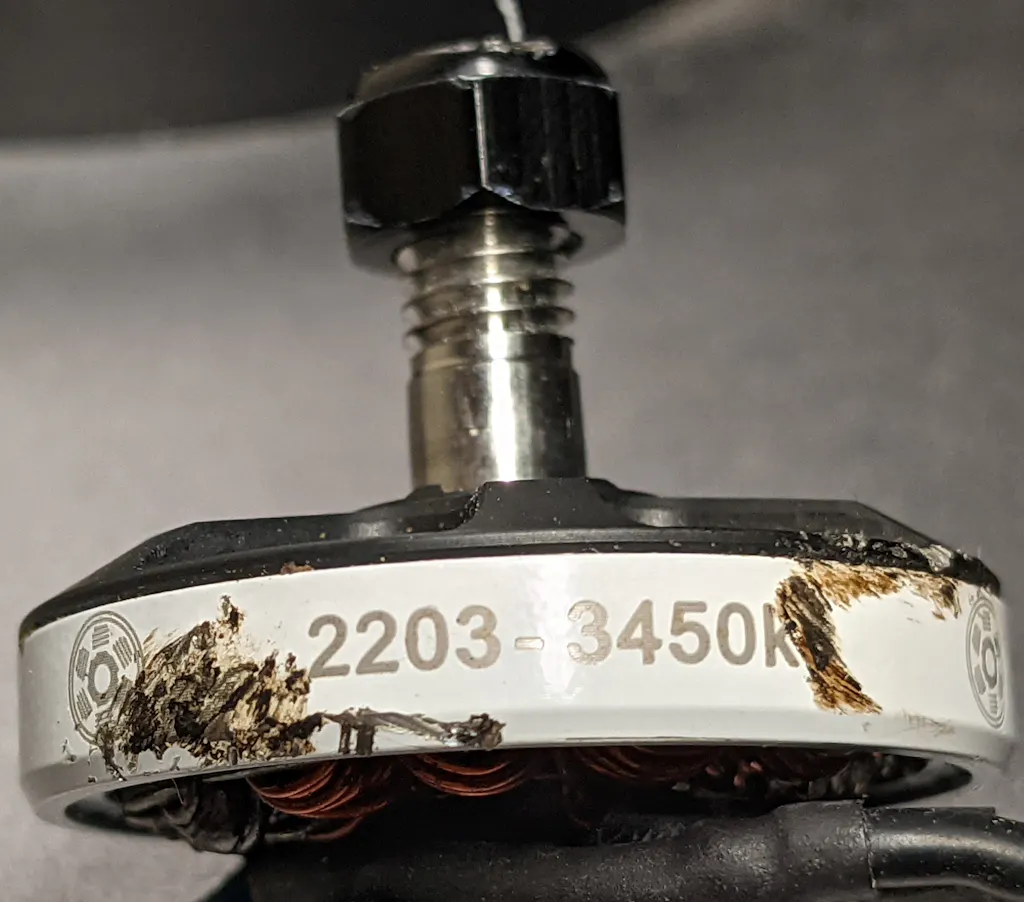

Smooth running motors. However I'm having problem with the motor bell shaft coming lose . Now I have two that needs bell replacement order spairs motors .so I only can give it four stars
