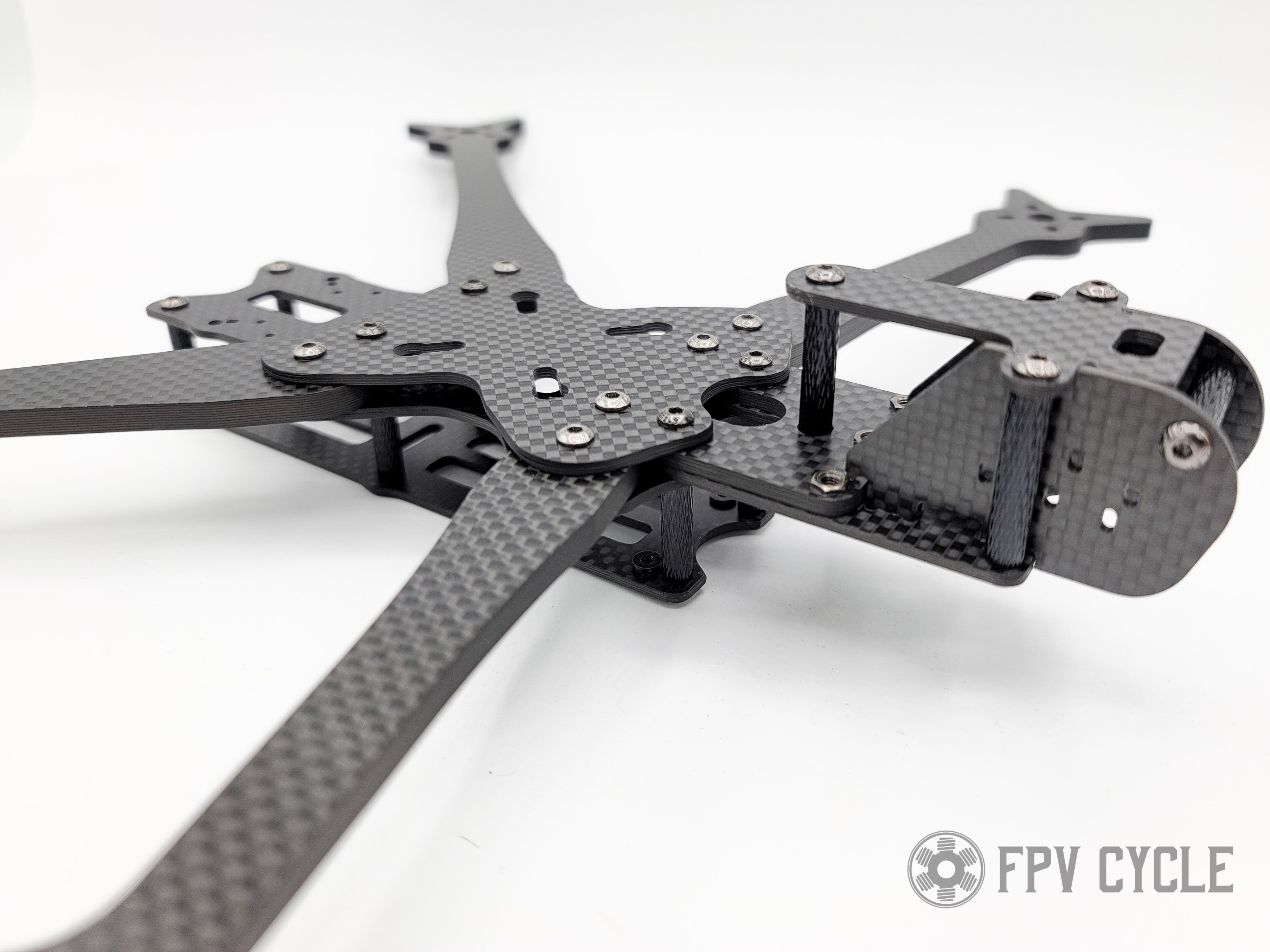

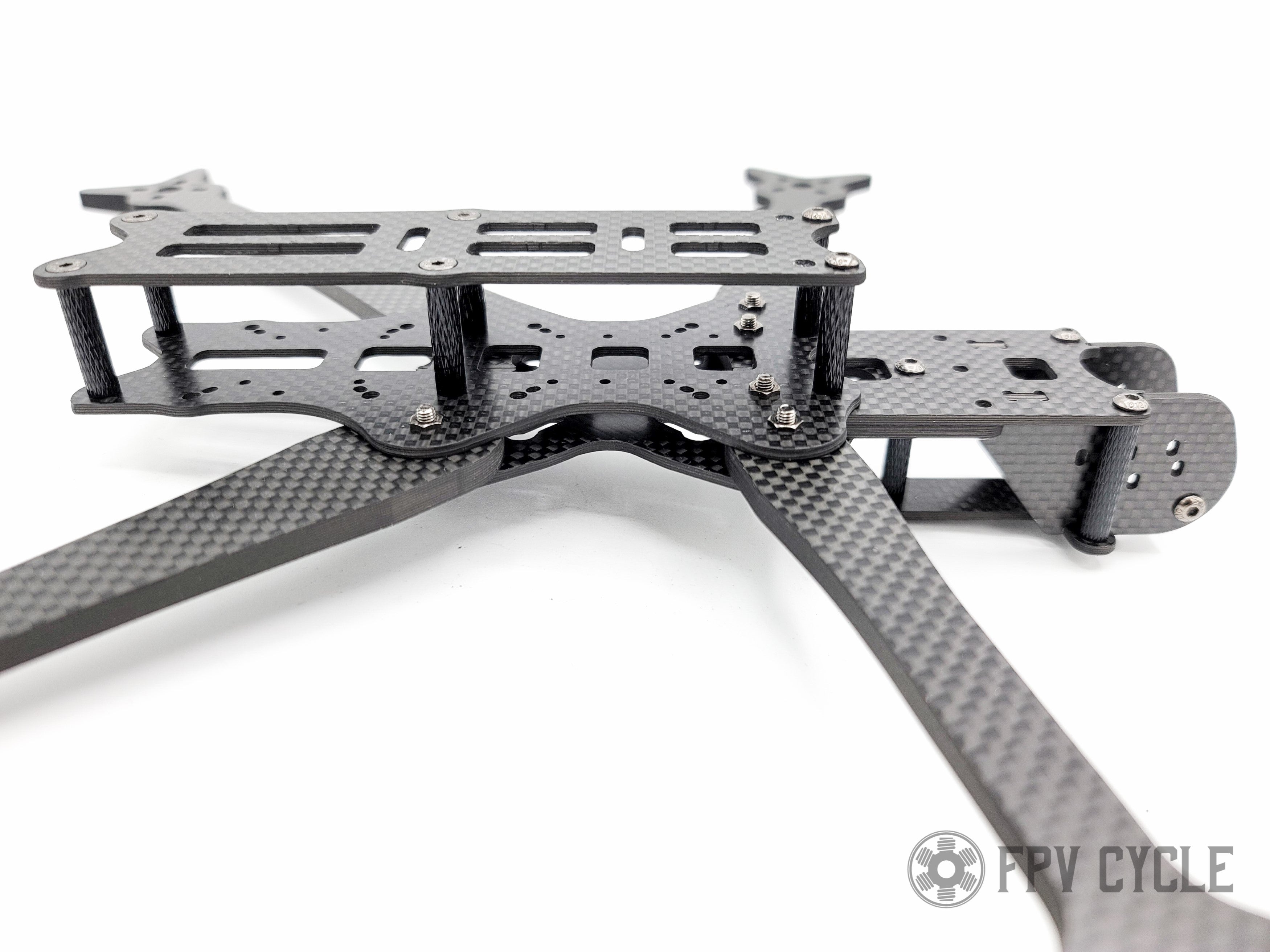

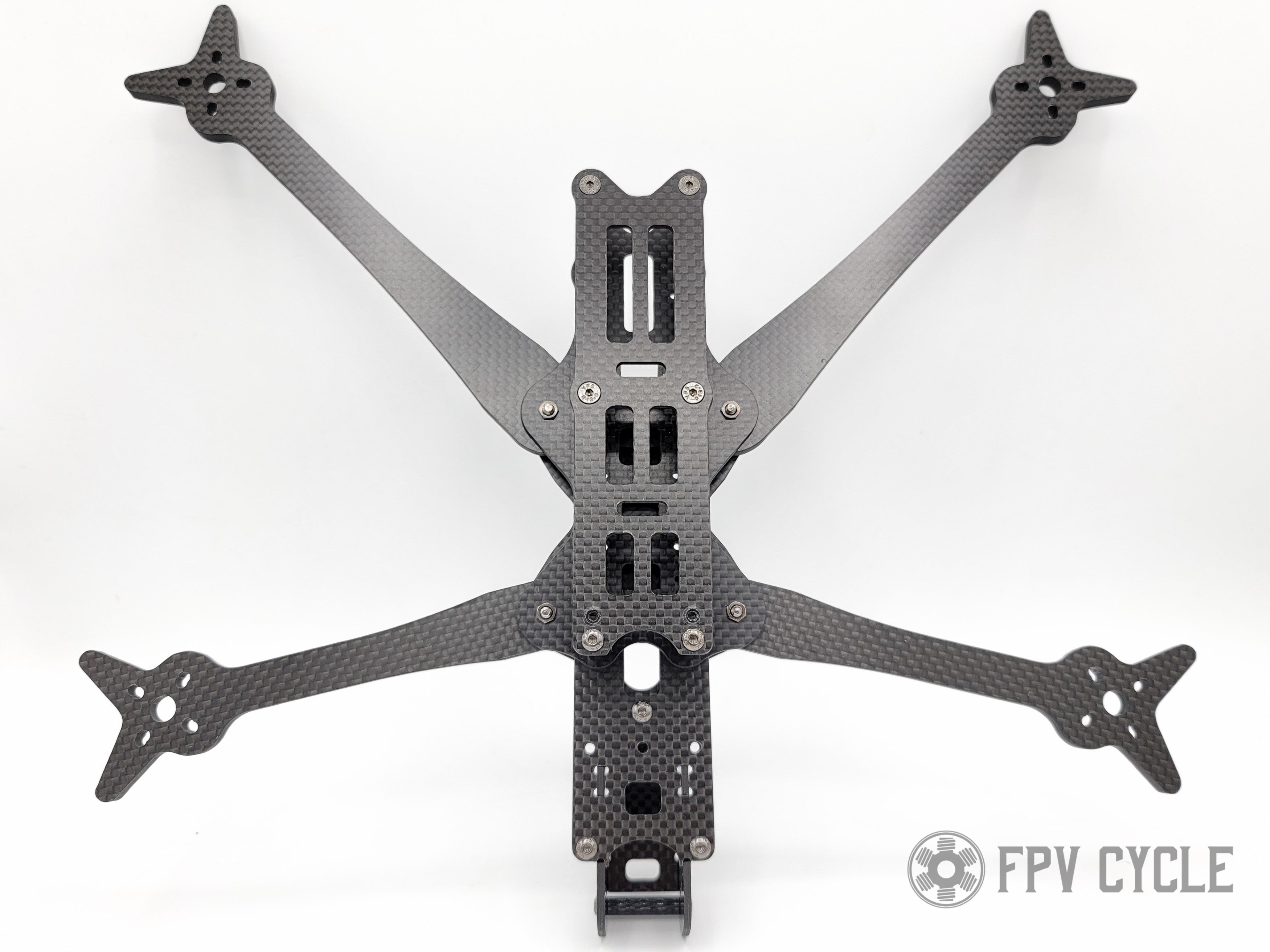

The long awaited CineGlide 7" frame. The headline feature of this frame is the unique structure that places the FPV camera low down to reduce risk of clipping your props while flying low. It also does not use any large 3D printed front end for the camera and fits the same TPU camera mounts as many of our other frames. The overall structure is based on the Glide and the finished frame weight including TPU GoPro mount will be well under 200g. No props in view of the GoPro.
This frame is best built with the FPVCycle 30mm motor, 6S or 8S and your favorite 7' prop or comparable drivetrain. For now, we have a limited run of frames. For spare parts, we will give you the mill file that you can order directly from CNCMadness until we have spare parts ourselves. Due to severe slow downs related to the world wide economic disaster, we've been heavily limited lately.
Please look at the product pictures as a build guide. The screw holes on the main 2mm plate has firm holes and may require a screw to be twisted through with a good driver and the plate itself before mounting to the frame. The front end has a bit that interlocks with another plate which will require a little force to position. These issues will be resolved in future batches. For now, we're pricing these frames at pre-covid prices because they were ordered for production pre-covid.
- Motor mount pattern: 16x16 and 19x19
- Frame weight fully built: ~163g not including GoPro mount
- Well constructed carbon
- Dead Cat layout, no props in view of GoPro
- 2mm body plates, 5mm arms
- One central 30x30/20x20/whoop mounting platform with one 20x20 in the rear.
- No stack screws touch any arm parts. No arm/stack integration.
- Two screws per independent arm with bracing against other arms. Easy swaps and secure fit.
- 20mm standoffs
- GoPro mount platform compatible with Glide, Prototype 5, CineSplore, Fouride.
- 12.9 hardness steel screws and steel press-nuts.
- Micro and Nano sized FPV camera spacing (20mm wide or narrower)
Quality carbon and solid construction. Top notch design, easy to build and service. Simple to tune and It flies awesome with some 30mm motors. Huge top plate for a variety of battery options. Had a few good crashes and its been holding up well.
So far this frame has been an absolute pleasure to work on. I am not finished with the build, but I will post my thoughts when I have completed tuning. As of now, I want to mention that the tolerances are very tight. I like that the tolerances are tight because nothing feels loose in the frame. The carbon is of excellent quality and I am a super big fan of the overall design.
Fantastic frame, have been flying others...7" but nothing like this. Flying with Fettec stack on default PID no any issues almost perfect.

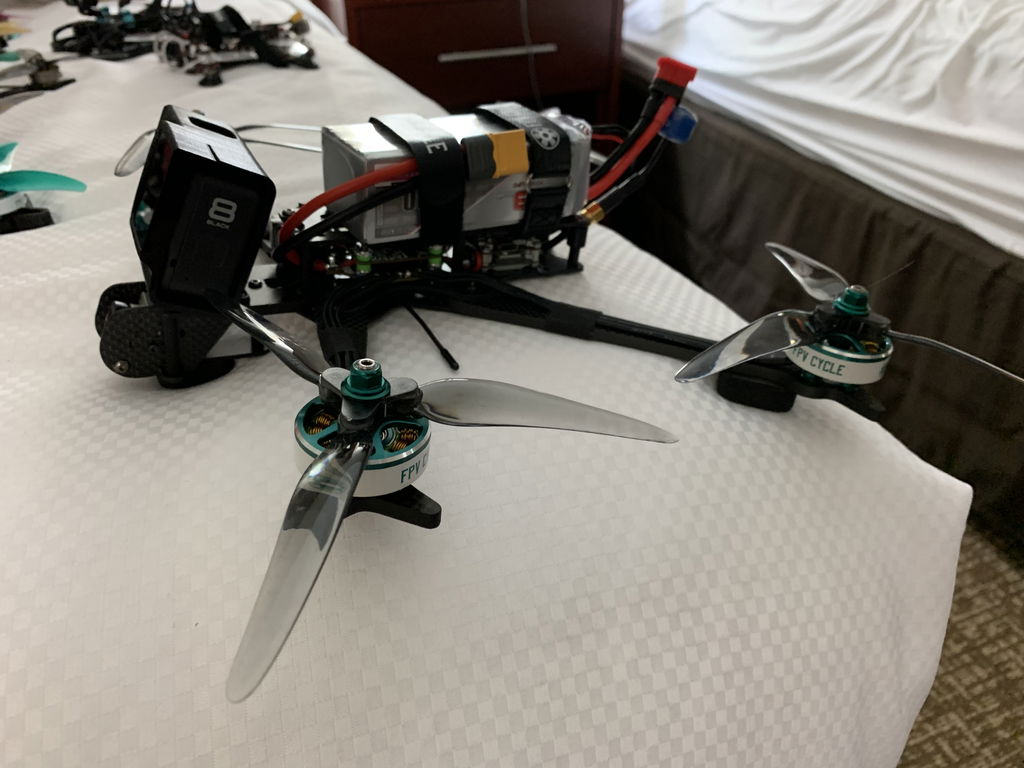

This is all around a sweet 7 inch rig. I almost cheaped out, and installed some 2806.5‘s, that I already had, but I figured I’d better build it right. Sooo glad I did. This craft flies like a 7 inch, but has the performance of a 5 inch. I am running 2200 - 2600mAh 6s GNB packs with XT 90 connectors. It does still preform well with XT 60s, just better with XT 90
Love this frame. It’s geometry and camera mount set it atop all others.
