Please see THIS article page for build parts spec and tuning

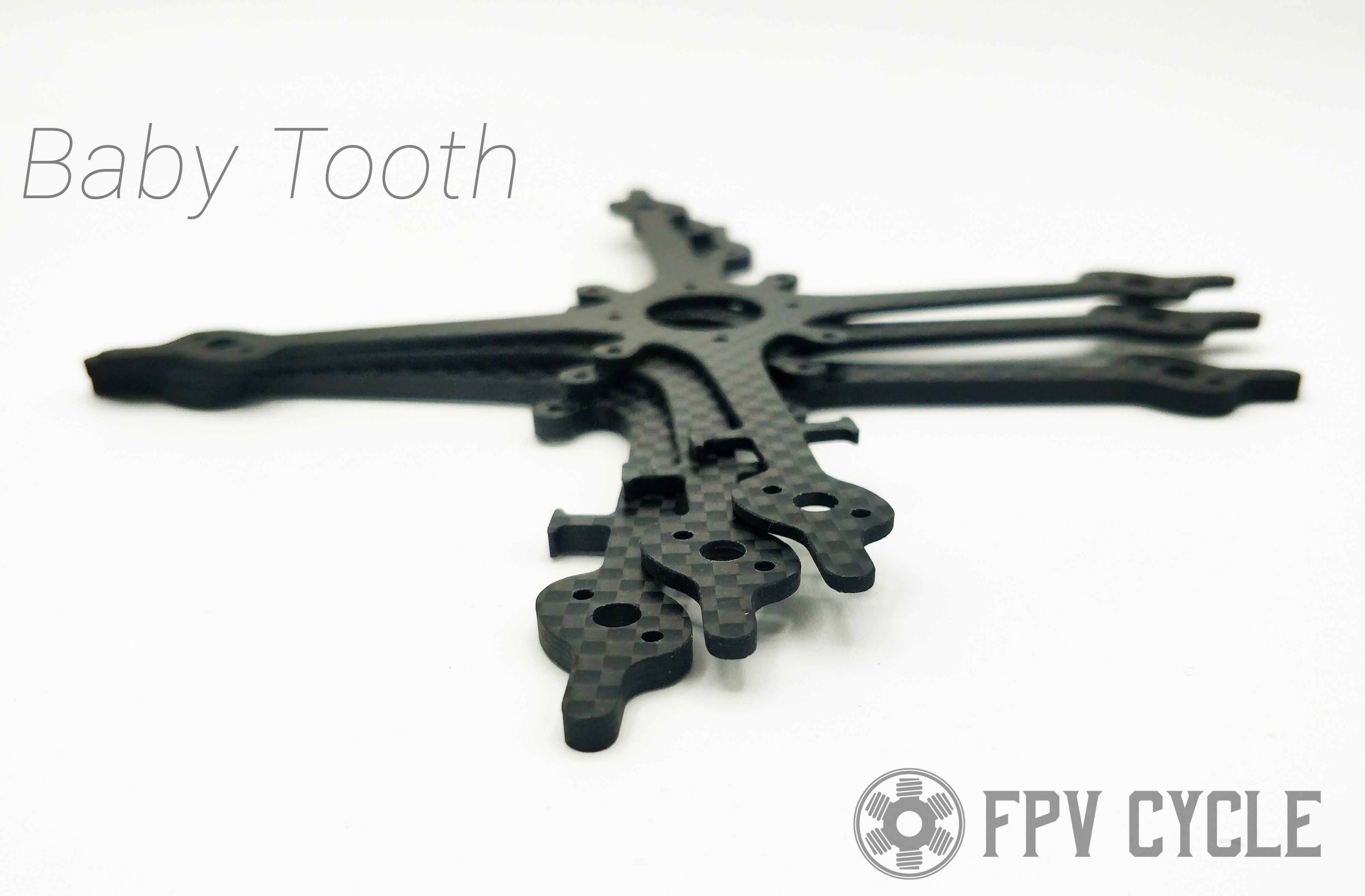

Use this frame in 1.5mm or 2mm with the 1S 3” drivetrain for a super fun and safe 45-55g AUW quad that will knock your socks off! The same pattern is offered in 3mm for the 3S drivetrain if you prefer a unibody over the TP3. It’s impressively stiff and confidence inspiring in 3mm and only 8.8g. You should be aware that the 1.5mm version is not as strong as the 2mm version but it is about 1.3g lighter.
This design is called the ‘Baby Tooth’ not because it’s smaller than the TP3, but because it supports 1S better and is simpler than the TP3. After some heavy refinement, this is the final pattern we landed on.
This frame is cut from T700 carbon but It does not have a chamfer on it. This frame is supposed to be a high value item with the majority of the design time invested into optimizing performance, weight and durability. Customizing the frame with your own hand done sanding on the edges is up to you.

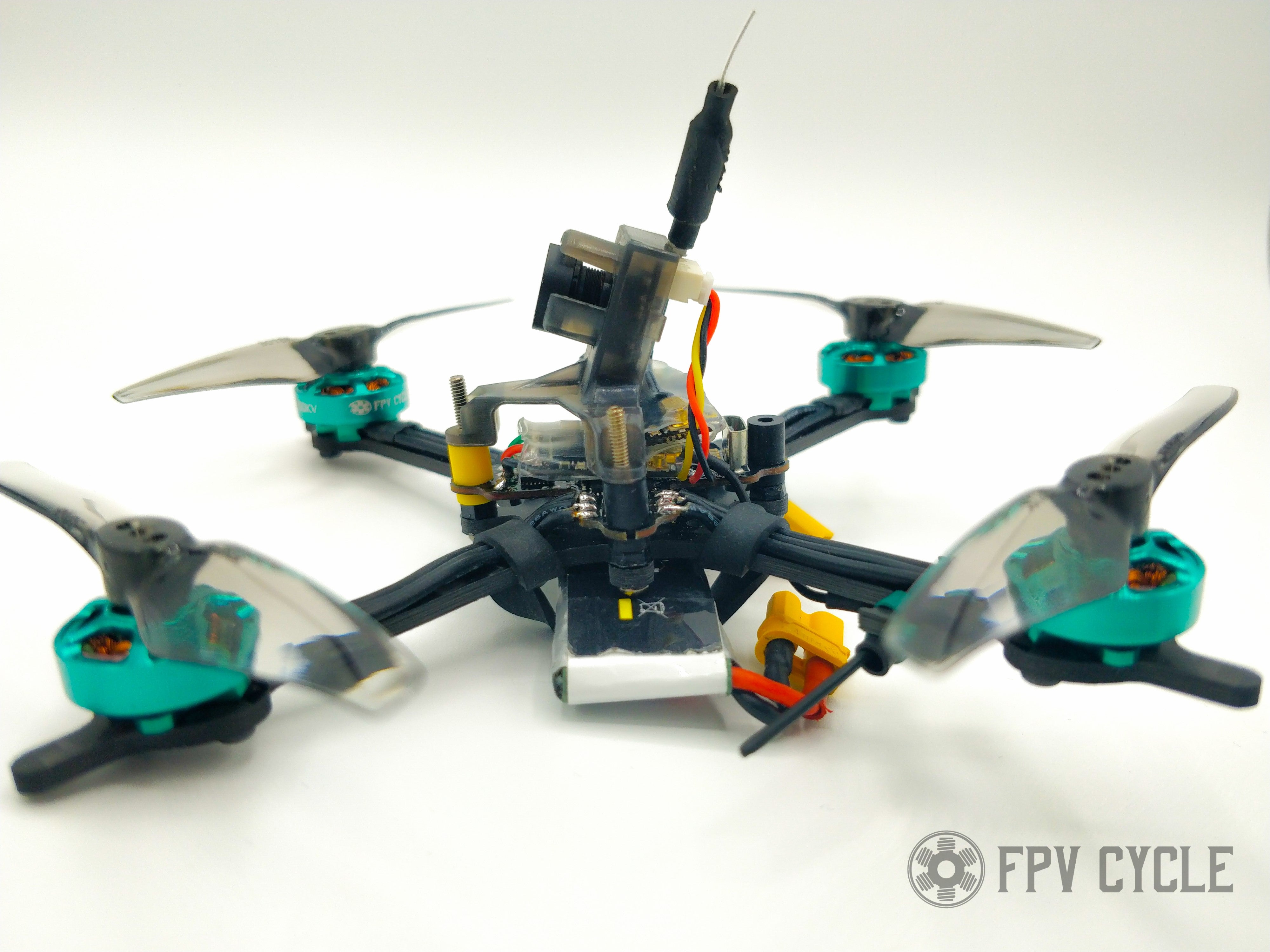

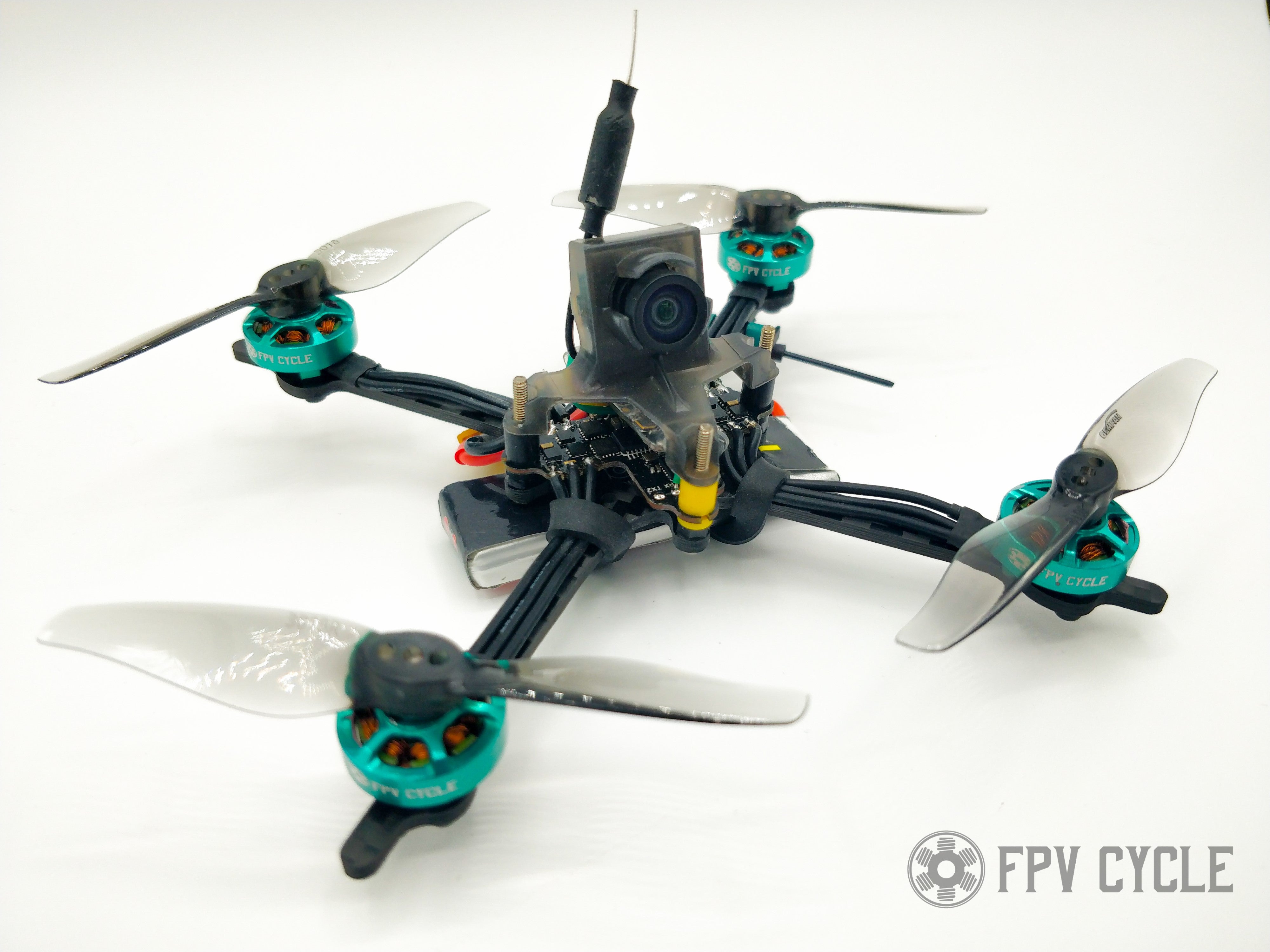

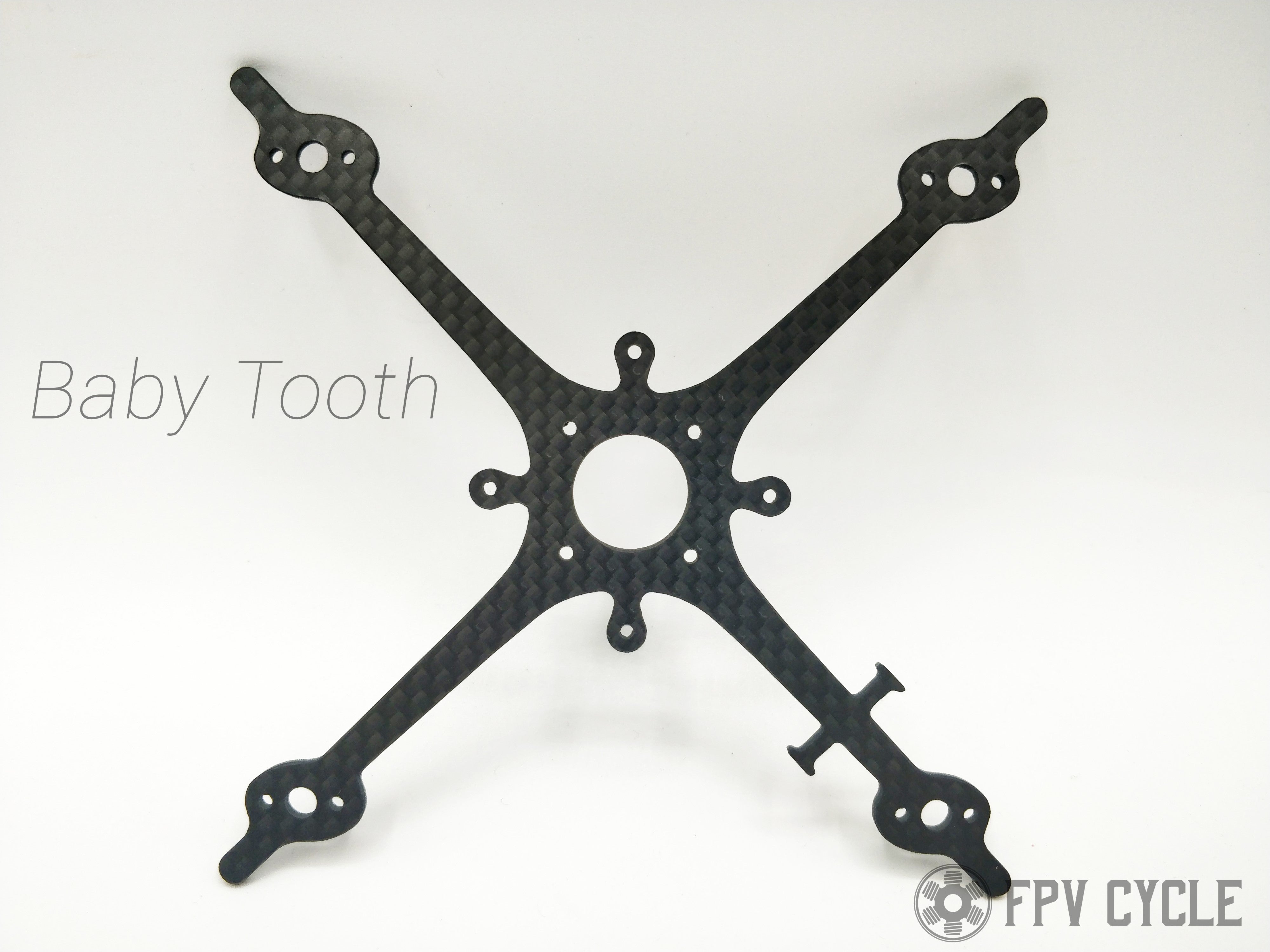

The latest version seen in the product pictures has thicker arm ends for more motor protection and a cross bar on one of the arms designed to mount the MiniMortal T antenna. The overall frame design has also had minor adjustments to it's lines to improve durability further.
- 115mm diagonal for 3” props
- T700 carbon
- 1.5mm thick ~4.4g (carbon only)
- 2mm thick 5.7g (carbon only)
- 3mm thick 8.8g (carbon only)
- Motor protection bumper
- FC Mounting: 25.4x25.4mm M2 (Whoop mount)
- FC Mounting: 16x16 M2 also on there

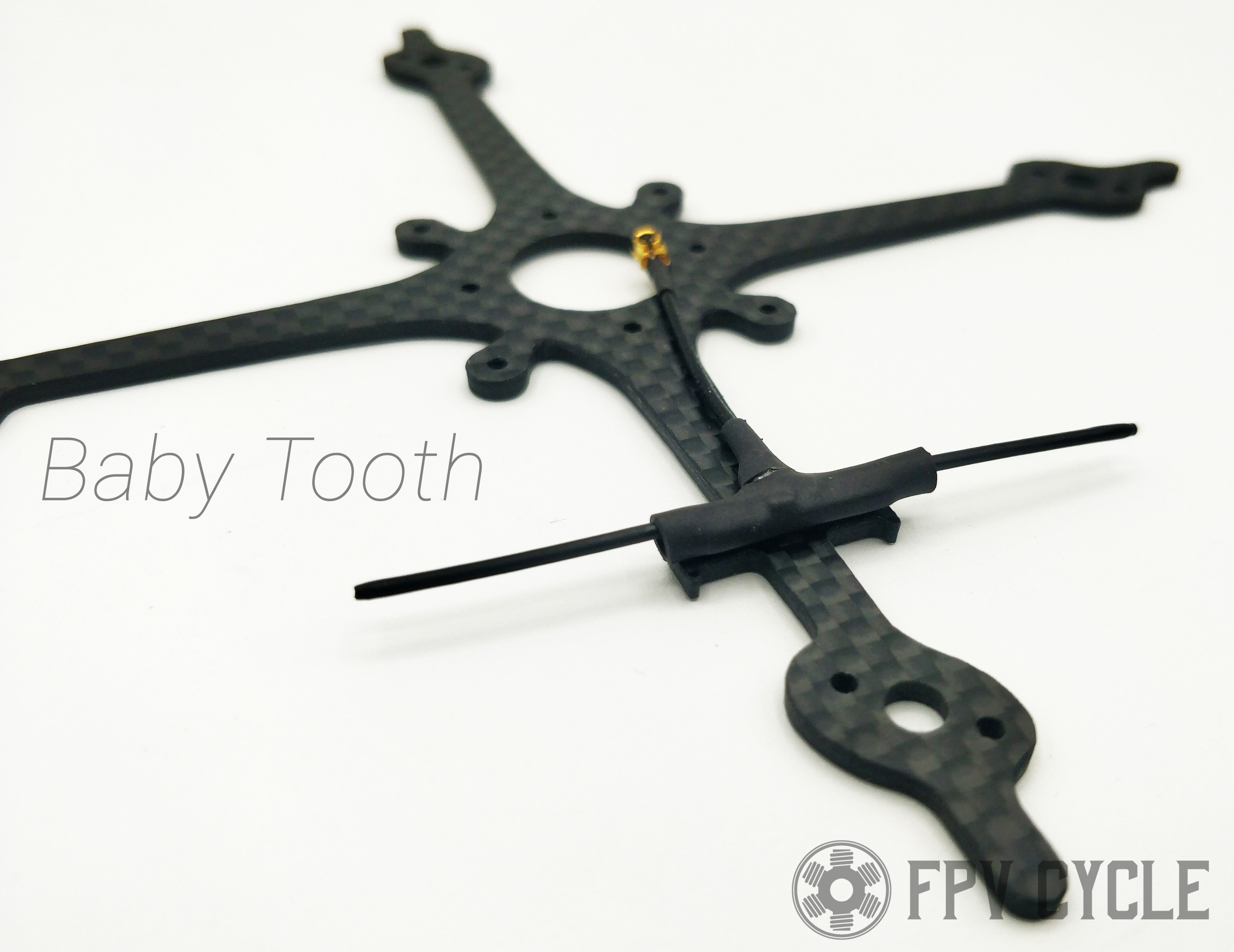

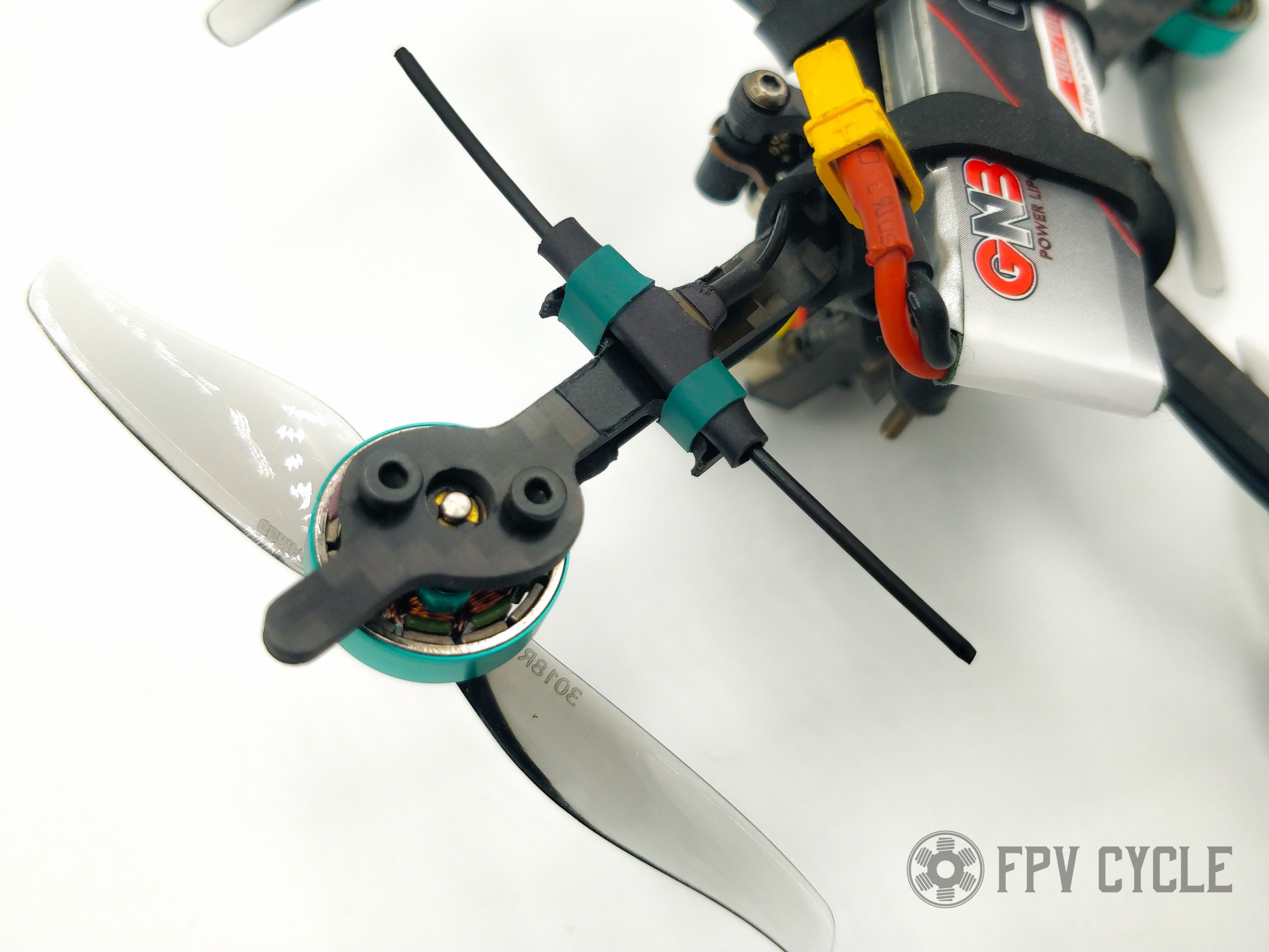

- Cross bar for mounting MiniMortal T antenna

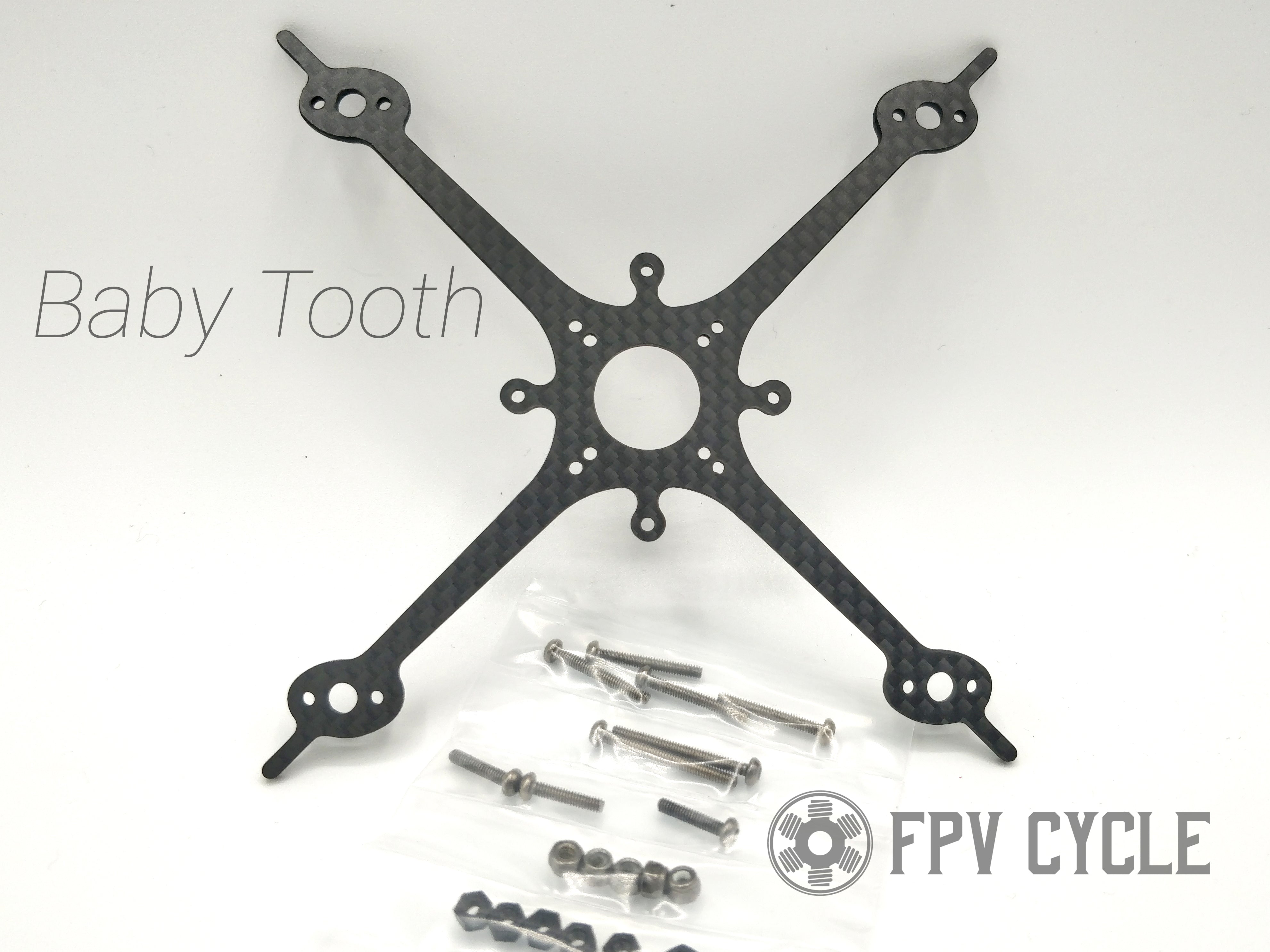

- FC mounting hardware included with frame

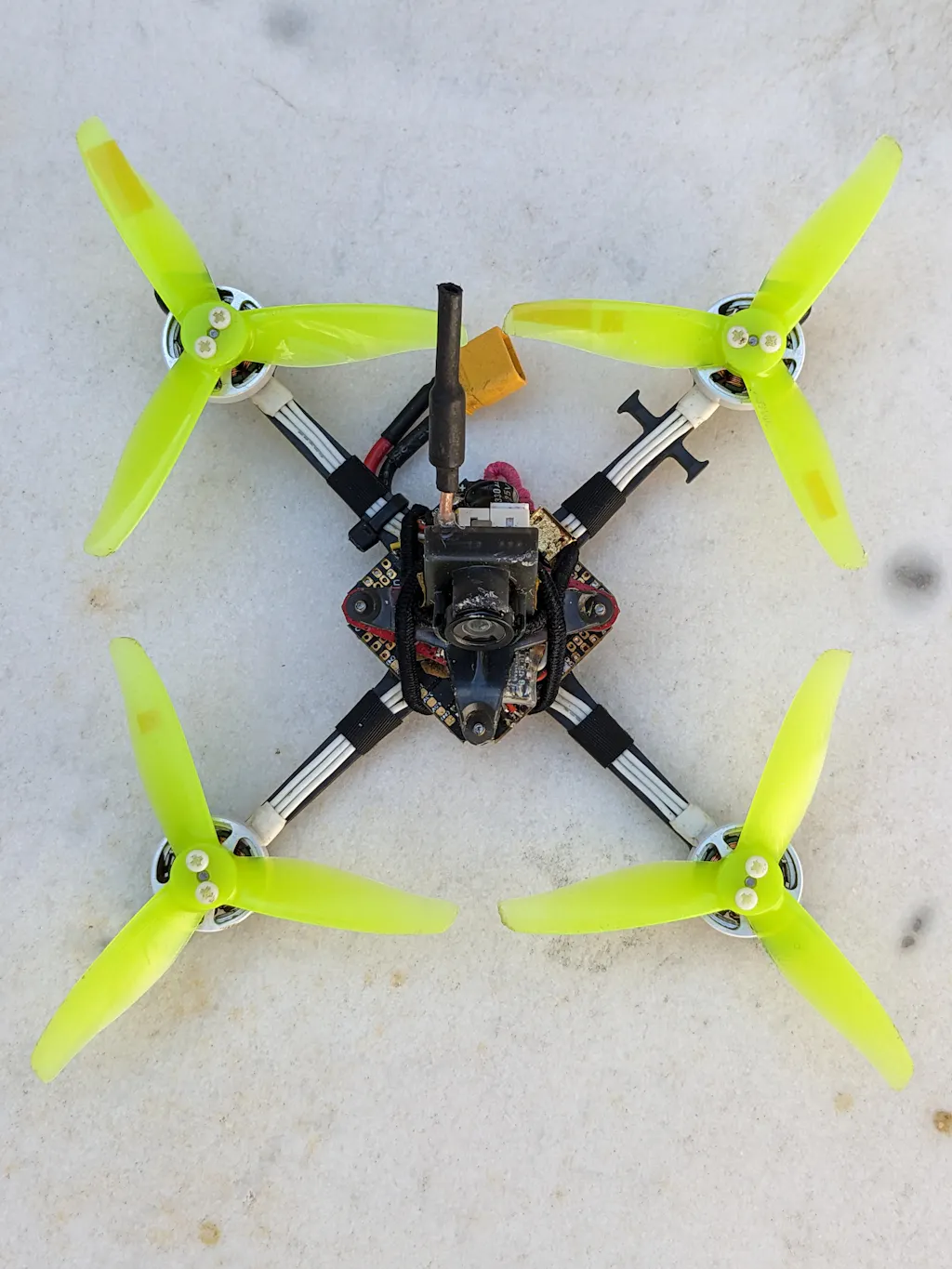

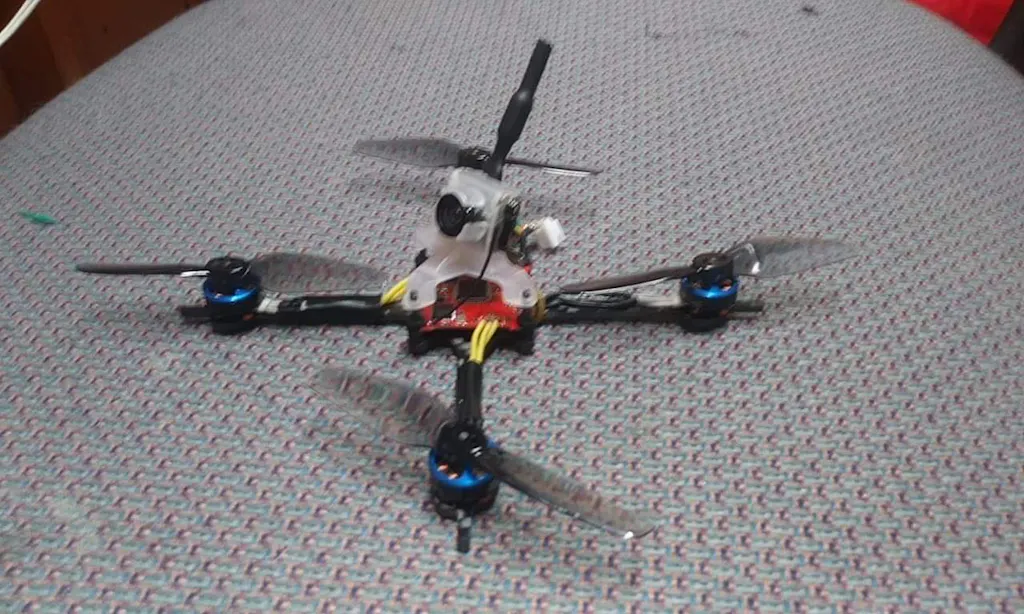

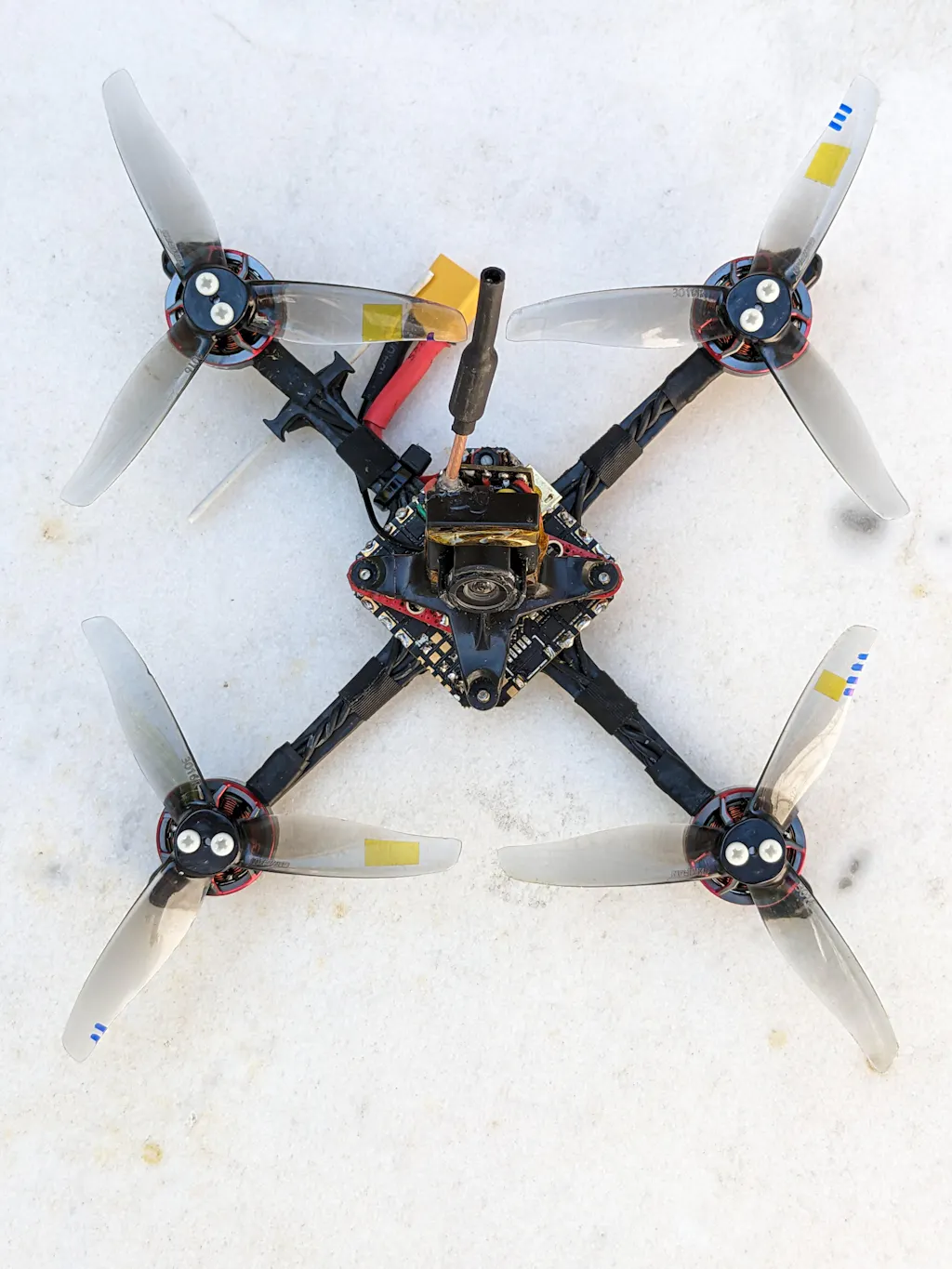

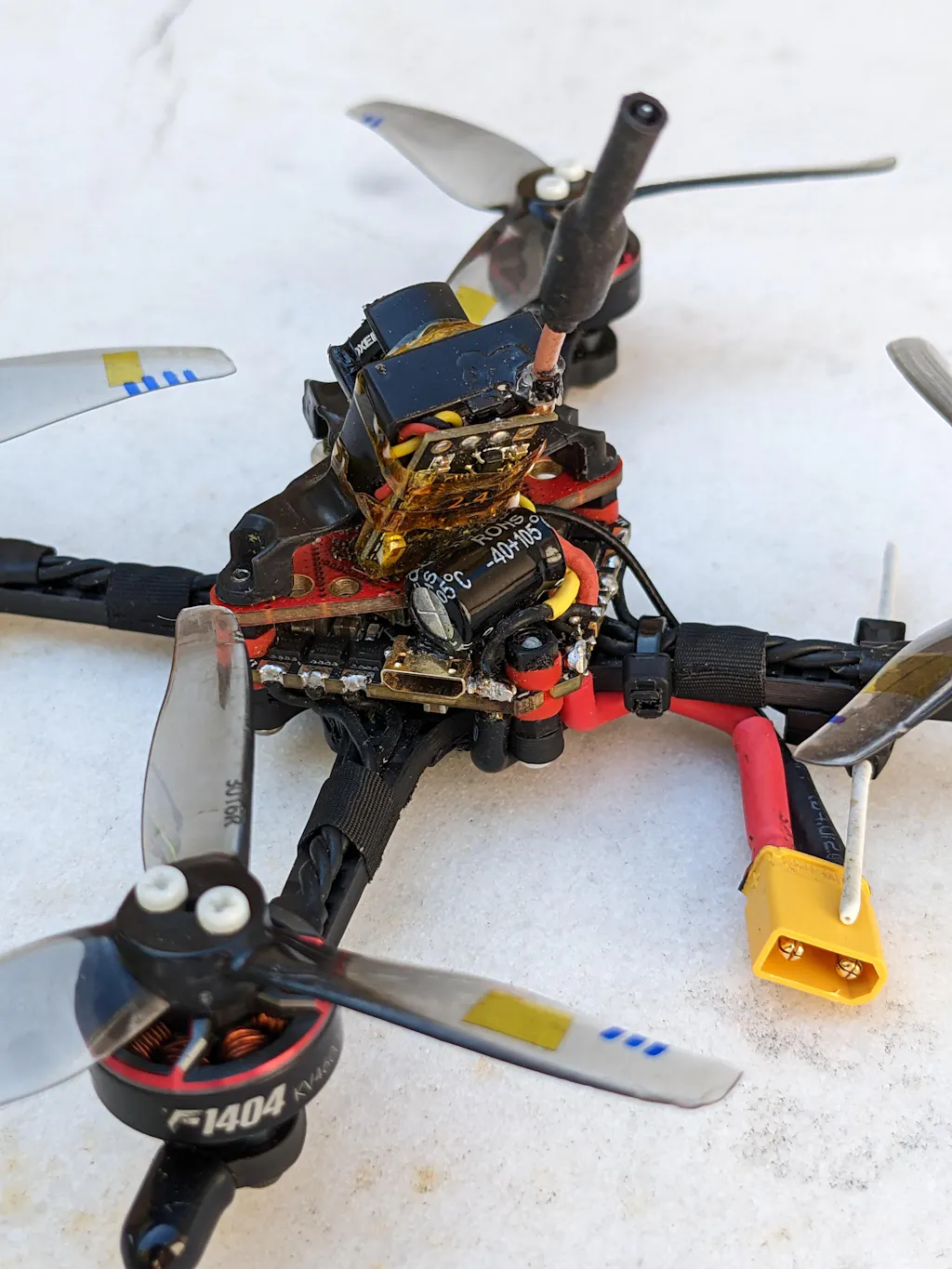

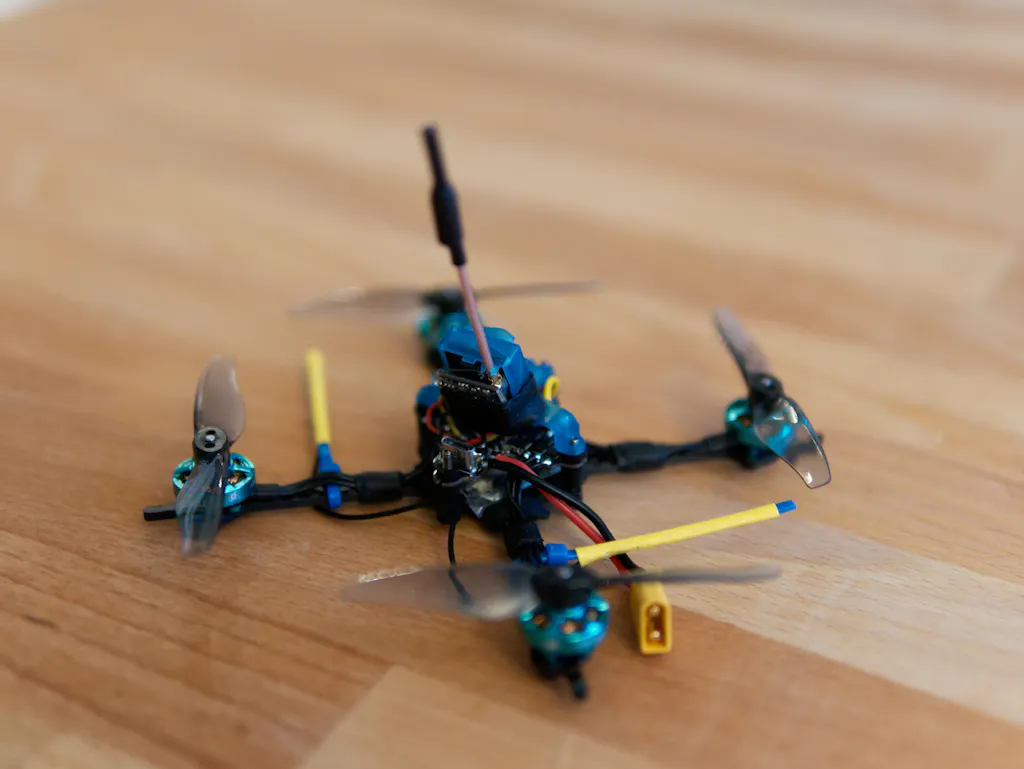

I added 4 11,400kv 1S FPV Cycle motors and the Bee Brain camera mount and it flies great. I also used an AIO board with the downward facing USB connector. I just flipped it up and changed the orientation in Betaflight to match. It was easy. I flew it with some 1S lipos but have since strapped an 18650 Sony cell to it for longer flight times.
Love this frame.
Thanks for making those super light frames buds, keep up the good job.
Haven't put it together but for the most part it's very nice and sturdy
The fact that common whoop AIOs with downwards facing usb connector cannot be used is bad. That should be improved as most of AIOs in this category have these kind of connectors. Keeping that into mind it is a good frame and as this is known before buying i do not reduce Stars.

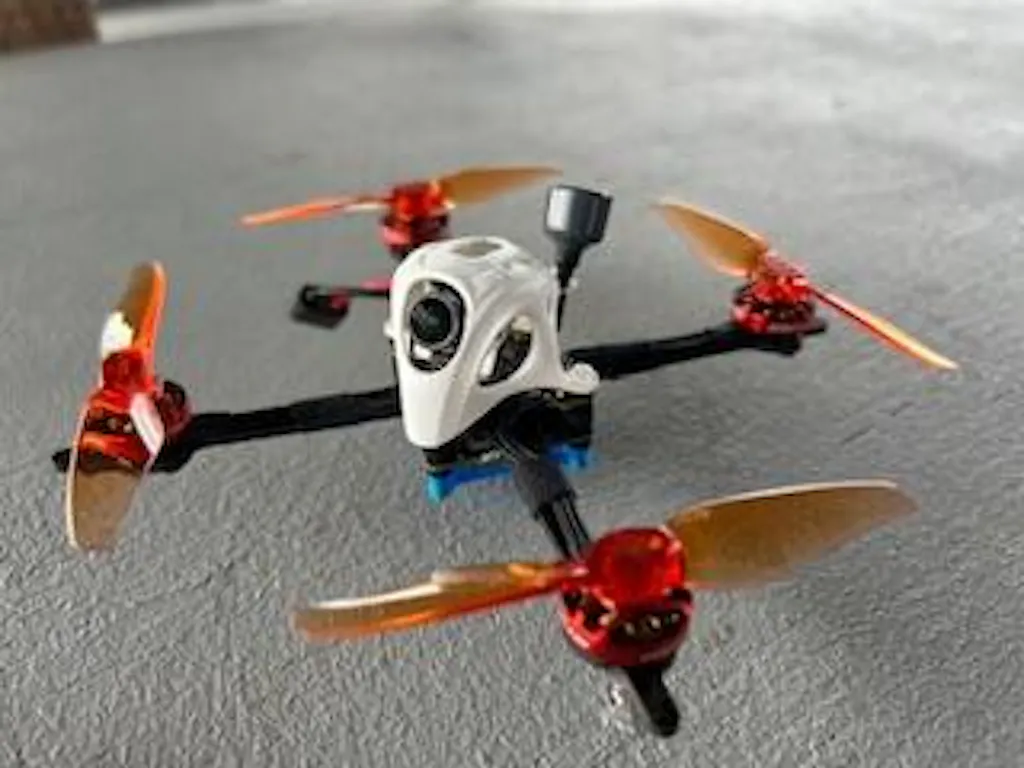

The 1.5mm frame makes a great 1s park ripper! Super quiet, and still very durable if kept light.
